Deerfield & Roundabout Railway Track & Wheel Data
(Scroll down for drawing notes. Revision 03-03-2011)

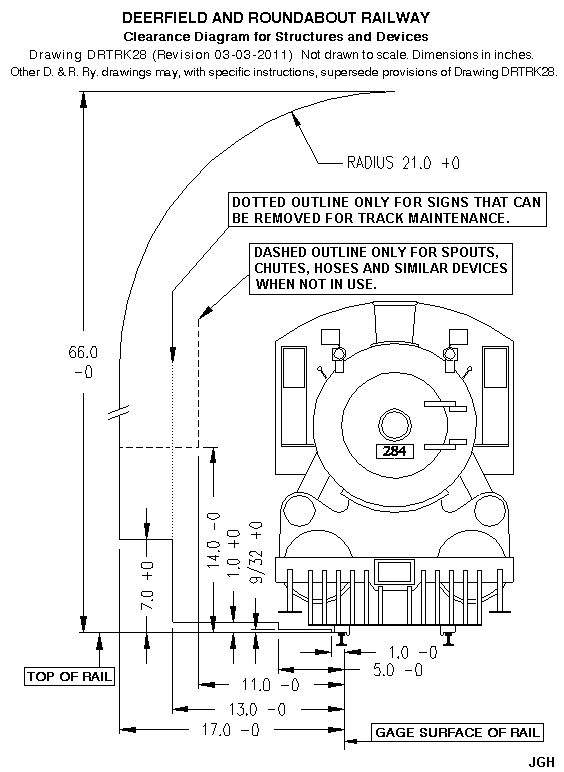

drtrk28

Notes for drawing DRTRK28 (Revision 03-03-2011)

  1. Dimensions and details for opposite side of track are mirror image and referenced from gage surface of opposite running rail.
  2. Applicable to tangent track and curved track of not less than 65 foot radius.
