Deerfield & Roundabout Railway Track & Wheel Data
(Revision 02-09-2006)

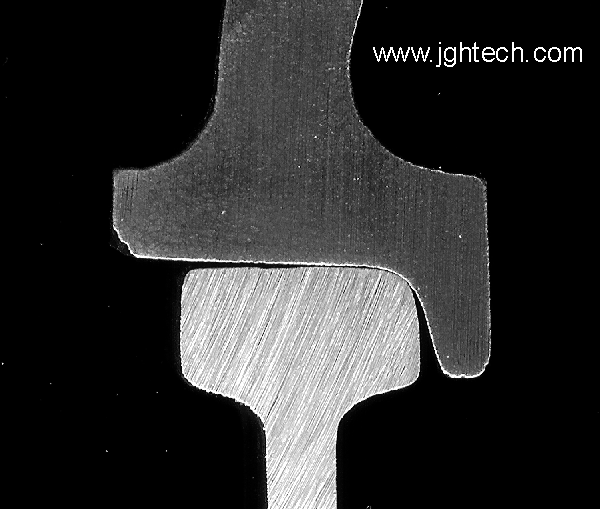

Image DRTRK3J, Worn wheel on worn 1 inch high aluminum rail, Notes.
Dimensions in inches.
1. Wheel material cast iron.
2. Width of wheel 0.785.
3. Wheel flange throat radius 0.109.
4. Flange height 0.237.
5. Width of rail head 0.495.
6. Gage side rail head corner radius 0.070.
7. Field side rail head corner radius 0.027.
