Deerfield & Roundabout Railway Track & Wheel Data
(Revision 02-09-2006)

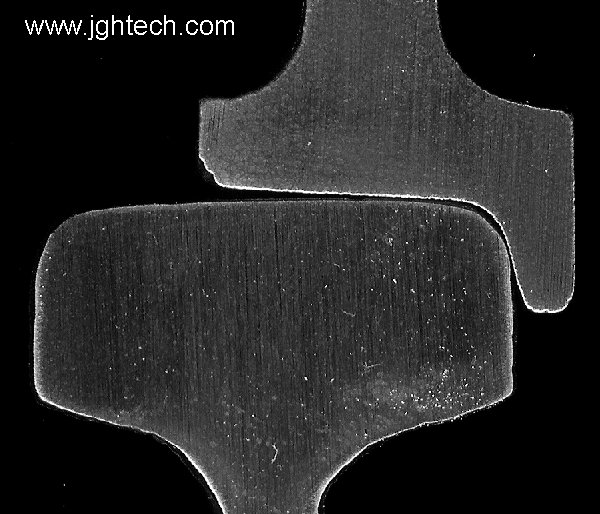

Image DRTRK3K, Worn wheel on worn on 12 pound steel rail, Notes.
Dimensions in inches.
1. Wheel material cast iron.
2. Width of wheel 0.785.
3. Wheel flange throat radius 0.109.
4. Flange height 0.237.
5. Width of rail head 1.000.
6. Gage side rail head corner radius 0.137.
7. Field side rail head corner radius 0.137.
