Deerfield & Roundabout Railway Track & Wheel Data
(Scroll down for drawing notes. (Revision 08-15-2008)

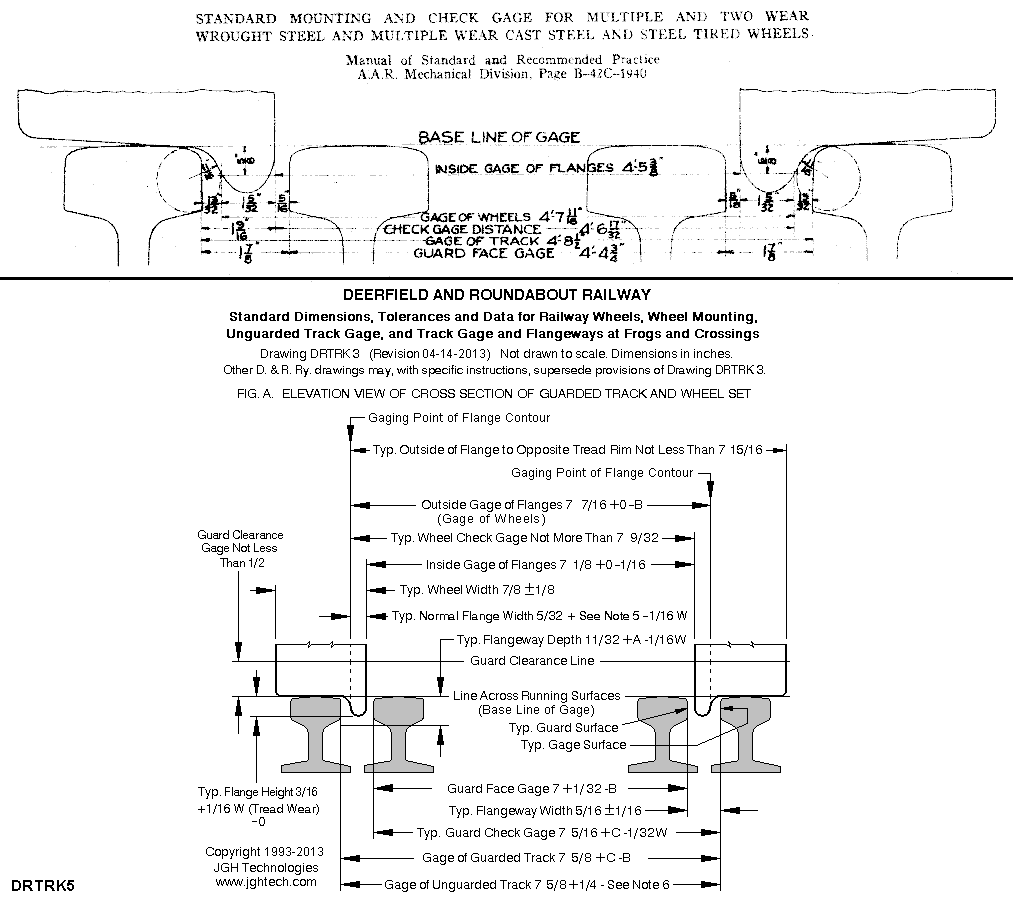

Comparison of American Railway Engineering Association Plan No. 793-40 inset drawing from Association of American Railroads Manual of Standard and Recommended Practice, Mechanical Division, Page B-42C-1940
and
D. & R. RY. Drawing DRTRK3 Figure A.
Notes for drawing DRTRK5 (Revision 08-15-2008)
1. American Railway Engineering Association Plan No. 793-40 consists of a number of inset drawings one of which is a replication of a drawing from the Manual of Standard and Recommended Practice of the Association of American Railroads, Mechanical Division, Page B-42C-1940, circa 1940. The A. A. R. drawing served as the basis for D. & R. RY. drawing DRTRK3, Figure A.
