Deerfield & Roundabout Railway Track & Wheel Data
(Scroll down for drawing notes. Revision 09-01-2004)

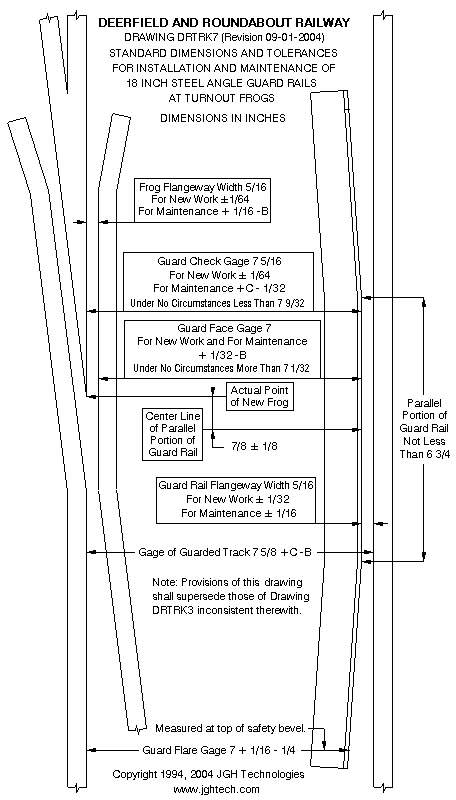

Notes for drawing DRTRK7 (Revision 09-01-2004)
Provisions of this drawing shall supersede those of Drawing DRTRK3 inconsistent therewith.
1. Tolerance B is not specified as any dimension under standard consistent with other specified dimensions and tolerances will give clearances.
2. Tolerance C is not specified as any dimension over standard consistent with other specified dimensions and tolerances will give clearances.
3. The guard flare gage applies to all guard rail flares and to both wing rail flares.
4. Dimensions and tolerances shall apply to other shapes of approved guard rails.
5. See drawing DRTRK4-A for outline of frog and crossing limit gage.
6. See drawing DRTRK9 for preferred names of parts. (NOT PUBLISHED AT THIS TIME)
